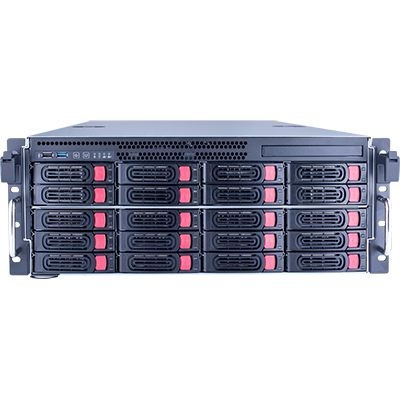

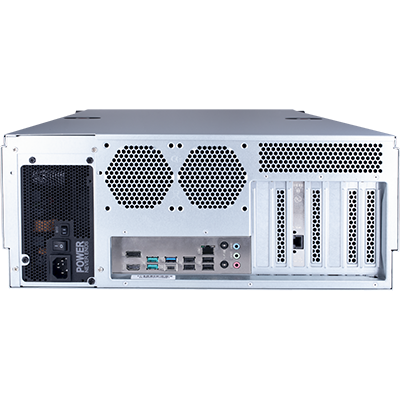

GV-Hot Swap System V6 RevD-4U,20-Bay
GV-Hot Swap System V6 (Rev. D) features a powerful data storage capacity. It comes with hot-swappable SATA mobile racks in sizes of 4U (20-bay) and 2U (12 / 8-bay). Depending on HDD capacity, GV-Hot Swap System V6 (Rev. D) can store up to 480 terabytes of recorded data.
GeoVision surveillance software empowers GV-Hot Swap System V6 (Rev. D) with 129–256 audio and video channels for GV-VMS V20.
Software Supported: GV-VMS V20
GeoVision surveillance software empowers GV-Hot Swap System V6 (Rev. D) with 129–256 audio and video channels for GV-VMS V20.
Software Supported: GV-VMS V20
- Powered by Intel Core Ultra 7 K Series Processor
- 64-bit Windows 11 IoT Enterprise
- RAM 32 GB (GV-VMSH Rev. D)
- H.265 CPU and GPU decoding
- Maximum storage capacity of up to 480 TB (4U 20-Bay) / 288 TB (2U 12-Bay) / 192 TB (2U 8-Bay)
- Hot-swap SATA HDDs for data storage
- Hot-swap status LED panel
- Dual 2.5 Gigabit LAN ports
- Multiple monitor display for up to 2 monitors
- Compatible with full selections of GeoVision accessories
- 129-256 channels for GV-VMS V20 (pure IP surveillance)
- Extreme performance for preinstalled GV-VMS software
- RAID type: 0, 1, 5, 6, 10, 50, 60 (optional)
- Anti-vibration feature to provide the disk throughput of 95% or higher
- Sliding rail kit for rackmount chassis with loading up to 80 KG
- Redundant power supply (optional)
- GV-AI Accelerator Module to enhance PVD detection channels and reduce CPU demand (optional)
- CE, FCC, LVD compliant (by request)
Note:
- If you are in an area with unstable voltage, make sure to install an automatic voltage regulator (AVR) or a UPS power supply with AVR function, to maintain a constant voltage.
- All damages to the power supply caused by unstable voltage are not included in the 2-year warranty service.
- All specifications are subject to change without notice.
Note:
- If you are in an area with unstable voltage, make sure to install an automatic voltage regulator (AVR) or a UPS power supply with AVR function, to maintain a constant voltage.
- All damages to the power supply caused by unstable voltage are not included in the 2-year warranty service.
- All specifications are subject to change without notice.
| Số model | Tên gọi | Chi tiết | |
|---|---|---|---|
| GV-Data Capture V3 Box (for GV-VMS/NVR) |
GV‐Data Capture allows the integration of POS systems and the GeoVision surveillance system through cable or network connection. | ||
| GV-IO Box Series (for GV-VMS/NVR) |
GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs and support both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection. | ||
| GV-Joystick V2 (for GV-VMS/NVR) |
|
GV-Joystick V2 facilitates PTZ camera control. | |
| RAID Card | The supported RAID types include 0, 1, 5, 6, 10, 50, 60. | ||
| GV-AI Accelerator Module | GV-AI Accelerator Module increases the number of PVD motion detection channels in GV-VMS or GV-AI Guard. | ||
- GV-Hot Swap System V6 (Rev. D)
- AC Power Cord
- Sliding Rail Kit
- Documents Download Guide
Note:
- If you are in an area with unstable voltage, make sure to install an automatic voltage regulator (AVR) or a UPS power supply with AVR function, to maintain a constant voltage.
- All damages to the power supply caused by unstable voltage are not included in the 2-year warranty service.
- All specifications are subject to change without notice.
Note:
- If you are in an area with unstable voltage, make sure to install an automatic voltage regulator (AVR) or a UPS power supply with AVR function, to maintain a constant voltage.
- All damages to the power supply caused by unstable voltage are not included in the 2-year warranty service.
- All specifications are subject to change without notice.
| Model No. | Ordering Part No. | Description | SKU No. |
|---|
